Lodestar Models

A 1/8Ton
B 1/4 Ton
C 1/4 Ton
E 1/2 Ton
F 1/2 Ton

J 1/2 Ton
H 1 Ton
L 1 Ton
R 2 Ton
RT 3 Ton

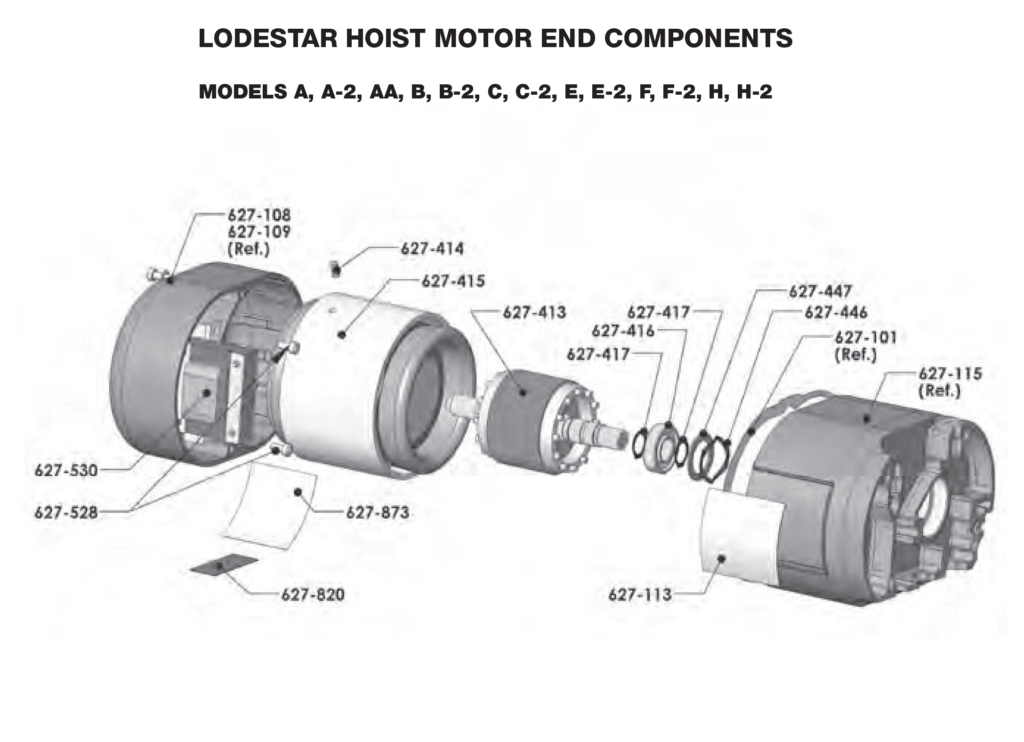

KEY 627-113

Please Contact Factory

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-411

–

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-412

982226 Screw Lockwasher

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-413

Rotor and Shaft Sub Assembly

286005  110-1-50 / 115-1-60
286005  220-1-50 / 230-1-60
286004  230/460
286004  575-3-60

Models:
A, B, &E

Rotor and Shaft Sub Assembly

286001  110-1-50 / 115-1-60
286001 220-1-50 / 230-1-60
286000  230/460
286000  575-3-60

Models: AA, C, F, & H

KEY 627-414

983541 Stator Pin

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-415

287007 (60 HZ) – 110-1-50 / 115-1-60
286008 (50 HZ) – 110-1-50 / 115-1-60

286007 (60 HZ) – 220-1-50 / 230-1-60
286009 (50 HZ) – 220-1-50 / 230-1-60

287006  230/460
287009  575-3-60

Models:
A, B, & E

287002 (60 HZ) – 110-1-50 / 115-1-60
286010 (50 HZ) – 110-1-50 / 115-1-60

286006 (60 HZ) – 220-1-50 / 230-1-60
286011 (50 HZ) – 220-1-50 / 230-1-60

287001  230/460
287005  575-3-60

Models: AA, C, F, & H

KEY 627-415A

–

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-416

82003 Inboard End Motor Shaft Bearing

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-417

27790 Snap Ring

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-439

27257 Reversing Switch (115/230-1-50/60 Units)

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-440

27295 Switch Clamp

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-441

982873 Screw

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-446

27292 Washer

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-447

27291 Spacer

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-528

982688 Screw

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-530

V1 Single Phase Units 110/115-1-50/60
*Units w/ Transfomer

29847 – 115V Primary w/ 48V Secondary
29849 – 115V Primary w/ 24V Secondary
29848 – 115V Primary w/ 48V Secondary w/ Thermal Cutout for CSA
28999 – 115V Primary w/ 24V Secondary w/ Thermal Cutout for CSA

V1 Single Phase Units 220/230-1-50/60

27771 – 220/230V Primary w/ 115V Secondary
28850 – 220/230V Primary w/ 48V Secondary
27780 – 220/230V Primary w/ 24V Secondary
27778 – 220/230V Primary w/ 115V Secondary w/ Thermal Cutout for CSA
27777 – 220/230V Primary w/ 48V Secondary w/ Thermal Cutout for CSA
28980 – 220/230V Primary w/ 24V Secondary w/ Thermal Cutout for CSA

V1 Three Phase Units * All Three Phase Voltages

27771 – 230/460V Primary w/ 115V Secondary
28850 – 230/460V Primary w/ 48V Secondary
27780 – 230/460V Primary w/ 24V Secondary
27778 – 230/460V Primary w/ 115V Secondary w/ Thermal Cutout for CSA
27777 – 230/460V Primary w/ 48V Secondary w/ Thermal Cutout for CSA
28980 – 230/460V Primary w/ 24V Secondary w/ Thermal Cutout for CSA
27792 – 550/575V Primary w/ 115V Secondary w/ Thermal Cutout for CSA
28798 – 550/575V Primary w/ 48V Secondary w/ Thermal Cutout for CSA
28796 – 550/575V Primary w/ 24V Secondary w/ Thermal Cutout for CSA

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2
J, J-2, JJ, JJ-2
L, L-2, LL, LL-2
R, R-2, RR, RR-2
RT, RT-2
RRT, RRT-2

KEY 627-599

–

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-820

24842 Warning Label

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2
J, J-2, JJ, JJ-2
L, L-2, LL, LL-2
R, R-2, RR, RR-2
RT, RT-2
RRT, RRT-2

KEY 627-873

928894 Chain Label

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2
J, J-2, JJ, JJ-2
L, L-2, LL, LL-2
R, R-2, RR, RR-2
RT, RT-2
RRT, RRT-2
