Lodestar Models

A 1/8Ton
B 1/4 Ton
C 1/4 Ton
E 1/2 Ton
F 1/2 Ton

J 1/2 Ton
H 1 Ton
L 1 Ton
R 2 Ton
RT 3 Ton

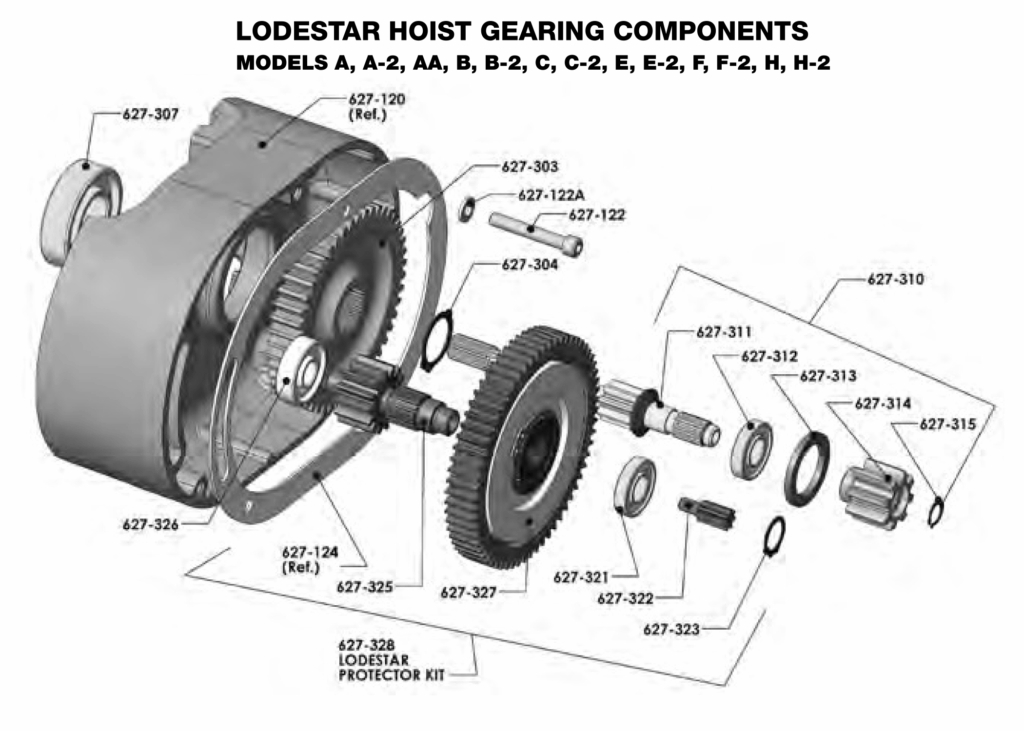

KEY 627-122

28830 Gear Housing Attaching Screw

28830 Screw

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-122A

940802 Gear Housing Attaching Screw Lockwasher

940802 Lockwasher

Models:
AA, AA-2
C, C-2
F, F-2
H, H-2

KEY 627-303

Liftwheel Gear

27010 (47 Teeth)
Models: A, A-2, C, C-2

28380 (39 Teeth)
Models: AA, AA-2

27009 (56 Teeth)
Models: B, B-2, E, E-2, F, F-2, H, H-2

KEY 627-304

27767 Liftwheel Gear Snap Ring

27767 Snap Ring

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-307

88429 Liftwheel Bearing - Gear End

88429 Liftwheel Bearing

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-310

Drive Shaft & Pinion Sub Assembly

Drive Shaft & Pinion Sub Assy
Includes: 627-311 thru 627-315 as applicable

27654 (5-43/64″ lg. shaft length)
Models: AA, AA-2, C, C-2, F, F-2, H, H-2

27653 (5-15/64″ lg. shaft length)
Models: A, A-2, B, B-2, E, E-2

KEY 627-311

Drive Shaft & Pinion

Drive Shaft and Pinion

C204
Models: AA, AA-2, C, C-2, F, F-2, H, H-2

C203
Models: A, A-2, B, B-2, E, E-2

KEY 627-312

82009 Drive Shaft & Pinion Bearing

82009 Drive Shaft and Pinion Bearing

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-313

27710 Drive Shaft & Pinion Bearing Spacer

27710 Spacer

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-314

Brake Hub

Brake Hub

27852 (1-1/2 lg.)
Models: AA, AA-2, C, C-2, F, F-2, H, H-2

27851 (2-1/32 lg.)
Models: A, A-2, B, B-2, E, E-2

KEY 627-315

27765 Brake Hub Snap Ring

27765 Snap Ring

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-321

82009 Intermediate Gear & Pinion Bearing Outboard End

82009 Outboard End Bearing

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-322

27712 Limit Switch Drive Pinion

27712 Pinion

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-323

27765 Intermediate Gear Snap Ring

27765 Snap Ring

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-325

Intermediate Pinion

Intermediate Pinion

28624 (14 Teeth)
Models: A, A-2, C, C-2

28625 (22 Teeth)
Models: B, B-2, E, E-2, F, F-2, H, H-2

KEY 627-326

88440 Intermediate Gear & Pinion Bearing Inboard End

88440 Bearing

Models:
A, A-2, AA, AA-2
B, B-2
C, C-2
F, F-2
H, H-2

KEY 627-327

Lodestar Protector

Lodestar Protector

28694 Protector
Models: A, A-2, B, B-2, E, E-2

28693
Models: AA, AA-2

28695
Models: C, C-2, F, F-2, H, H-2

KEY 627-328

Lodestar Protector Kit

Lodestar Protector Kit
Includes Items:
627-124, 627-321, 627-322, 627-323, 627-325, 627-327
Models:
A, A-2, AA, AA-2, B, B-2, C, C-2, E, E-2, F, F-2, H, H-2

2876
Models: A, A-2

2877
Models: AA, AA-2

2878
Models: B, B-2, E, E-2

2879
Models: C, C-2

2880
Models: F, F-2, H, H-2
